Bơm thủy sản G series

Mã sản phẩm : 1495555060

0đ
Số lượng:

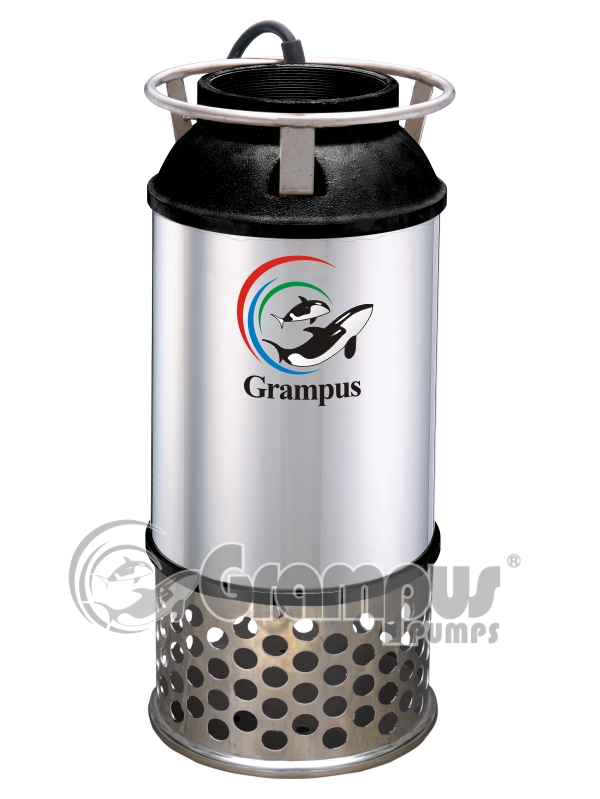

    G series Axial-Flow Large Volume Water Pump


    G series Axial-Flow Large Volume Water Pump

    G-water-pump

    APPLICATION

    1.1/ HP discharge 4" and 1HP discharge 5" are 2
    2.Collocation with horticultures, or landscape gardening.
    3.Drainage of stream, river, farm-irrigation, fisher ponds.
    4.Draninage of sewer treatment, water conservancy engineering, waterworks or other
    industries.
    5.Pump input can be changed to flange as a channel to the water cycle of plant. suitable to water cycle in carp farm.
    Caliber 100．125．150．200．250．300(mm)

    Liquid

    		 Temperature 0℃~40 ℃ (32℉~104℉)
    Application
    Avaiable to drainage of strems,farmingwater conservancy,fishponds,sewers, waterworks,and various related industrial water fields.This type is particular designed for drainage volume of eater.

    The lowest depth

    		 ▽30 M
    Pump
    Impeller
    		 Vortex Impeller
    Seal

    Dual mechanical seal
    Upper Cover
    		 FC-200(5-20HP)／SUS-304(0.5-1HP)
    Bearing Heavy duty bearing
    Motor Bracket
    		 Seal Bracket
    Mechanical Seal Bracket FC-200／Bronze
    Impeller SUS-304(0.5-1HP)／Bronze(5-20HP)
    Volute Casing
    		 FC-200／Bronze
    Seal Bracket
    		 FC-200／Bronze
    Seal
    Lubricat
    		 ISO VG.# 32
    Motor Side
    		 Carbon / Ceramic
    Pump Side
    		 SIC／SIC(0.5-1HP)Carbon／Ceramic
    Motor
    Type
    		 Submersible dry type
    Insulation class
    		 B class(130°C)／F class(7.5-20HP)
    Frquency 50 Hz / 60 Hz
    Pole / Rotation (rpm) 2P/2850／3450．4P/1425／1750(rpm)
    Phase/Volts
    		 1 P / 110V ／ 220V‧3 P/220V ／ 380V ／ 440V
    Casing
    		 SUS-304
    Main shaft
    		 SUS-304
    Cable
    		 Standard VCT /Optional



    PERFORMANCE CURVE亨龍泵浦G系列性能曲線圖STRUCTURAL DRAWING







    GRAMPUSPUMP-G-Profile

    亨龍泵浦G系列規格表
