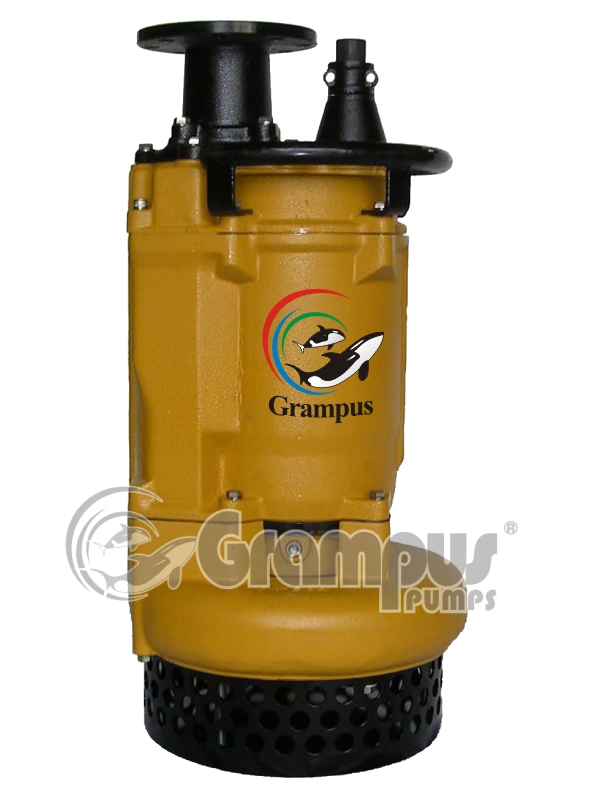

KR-water-pump

APPLICATION

	1.The special construction of the bridge,he harbor, the river and the civil engineering drain off water using.
	2.The sand graduated field of the cement depot and the kiln industry sewage removes.
	3.The sedimentation pool, organic sewage and dirt mud discharges.
	4.The water of underground, subway,building foundation and underground spring discharges.
	5.The water accumulation of civil engineering, spring water, sewage, the basement and the concave land discharge.

MATERIAL AND STANDARD TABLE

Caliber				50mm．80mm．100mm．150mm
Liquid	Temperature			0℃~40 ℃ (32℉~104℉)
	Application			The special construction,the bridge, the harbor,the river,the civil engineering drain off water using
	The lowest depth			▽30 M
Pump	Structure	Impeller		Semi-open Impeller
		Seal		Dual Mechanical Seal
	Material	Upper Cover		FC-250
		Bearing		Heavy-duty bearing
		Impeller		HiCrFC
		Volute Casing		FCD-500
		Seal Bracket		HiCrFC
		Seal	Lubricat	ISO VG.# 32
			Motor Side	Carbon / Ceramic
			Pump Side	Silicon Carbon / Silicon Carbon
Motor	Type			Submersible dry type
	Insulation class			F class (155°C)
	Frquency			50 Hz / 60 Hz
	Pole / Rotation (rpm)			2P / 2850 / 3450 (rpm)
	Phase/Volts			3 P/220V ／ 380V
	Inner protector			Auto Reset Motor Protector
	Material	Casing		FC-200
		Main shaft		SUS-420
		Cable		VCT
