Trang chủ / BƠM CHÌM GRAMPUS / Bơm chìm nước thải công nghiệp AS Series

Lượt xem: 2664

Mã sản phẩm : 1495381103

0đ

Số lượng:

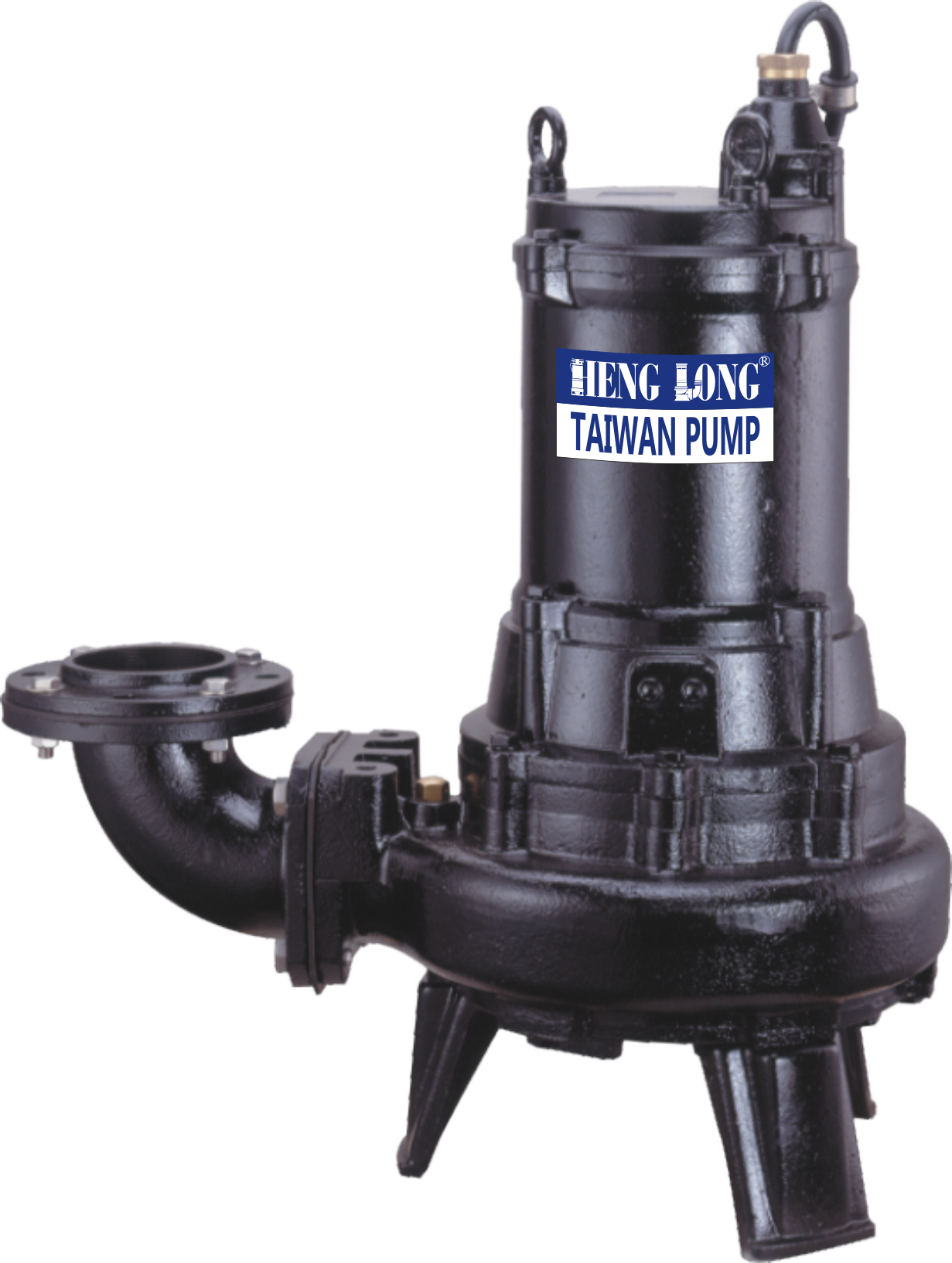

AS-water-pump

APPLICATION

	1.Wastewater lift station,municipal wastewater treatment plant.
	2.Building wastewater treatment system.
	3.Piggery excrement,animal & poultry farm.
	4.School, hospital, community wastewater treatment system.

MATERIAL AND STANDARD TABLE

Caliber				80mm．100mm．150mm．200mm
Liquid	Temperature			0℃~40 ℃ (32℉~104℉)
	Application			Arailable to deal with wastewater of building, sewer and industrial wasterwater of food, paper, mining, textile, leather, dyeing and metal.
	The lowest depth			▽30 M
Pump	Structure	Impeller		Semi-open、Channel、Vortex lmpeller
		Seal		Dual Mechanical Seal
	Material	Upper Cover		FC-200
		Bearing		Heavy-duty bearing
		Impeller		FC-450
		Volute Casing		FC-200
		Seal Bracket		FC-200
		Seal	Lubricat	ISO VG.# 32
			Motor Side	Carbon / Ceramic
			Pump Side	Silicon Carbon / Silicon Carbon
Motor	Type			Submersible dry type
	Insulation class			B class(130℃)/F class(7.5-15HP)
	Frquency			50 Hz / 60 Hz
	Pole / Rotation (rpm)			2P/ 2850／3450．4P/ 1425／1725 (rpm)
	Phase/Volts			220V／380V／440V
	Inner protector			2-10HP:Auto Reset Motor Protector 15-20HP:Miniature Thermal Protector
	Material	Casing		FC-200
		Main shaft		SUS-403/SUS-410/SUS-420
		Cable		Standard VCT /Optional
