Trang chủ / BƠM CHÌM GRAMPUS / Bơm chìm hút rác, nước thải sinh hoạt B series

Lượt xem: 2805

Mã sản phẩm : 1495552976

0đ

Số lượng:

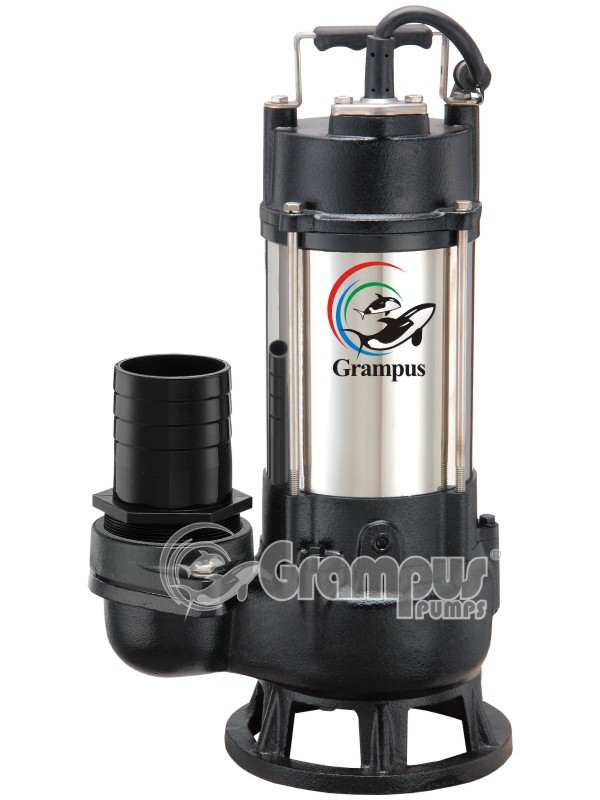

B-water-pump

APPLICATION

	1.Wastewater lift station,municipal wastewater treatment plant.
	2.Building wastewater treatment system.
	3.Piggery excrement,animal & poultry farm.
	4.School, hospital, community wastewater treatment system.
	5.Food, paper, mining, textile, leather industry wastewater treatment system.

MATERIAL AND STANDARD TABLE

Caliber				50‧80‧100(mm)
Liquid	Temperature			0℃~40 ℃ (32℉~104℉)
	Application			Arailable to deal with wastewater of building, sewer and industrial wasterwater of food, paper, mining, textile, leather, dyeing and metal.
	The lowest depth			▽30 M
Pump	Structure	Impeller		Vortex Impeller
		Seal		Dual Mechanical Seal
	Material	Upper Cover		FC-200
		Bearing		Heavy-duty bearing
		Impeller		FC-200
		Bottom Plate		FC-200/PP+Fiber
		Volute Casing		FC-200
		Seal Bracket		FC-200
		Seal	Lubricat	ISO VG.# 32
			Motor Side	Carbon / Ceramic
			Pump Side	Silicon Carbon / Silicon Carbon
Motor	Type			Submersible dry type
	Insulation class			B class(130℃)/F class(7.5-15HP)
	Frquency			50 Hz / 60 Hz
	Pole / Rotation (rpm)			2P / 2850 / 3450 (rpm)
	Phase/Volts			1 p / 110V or 220V‧3 p/220V or 380V
	Inner protector			Auto Cut Motor Protector
	Material	Casing		SUS-304
		Main shaft		SUS-403/SUS-410/SUS-420
		Cable		Standard VCT /Optional
